논문 리뷰 및 구현 - Pairs Trading: Performance of a Relative Value Arbitrage Rule

논문

글쓴이

Evan Gatev

Simon Fraser University

William N. Goetzmann

Yale School of Management - International Center for Finance; National Bureau of Economic Research (NBER)

K. Geert Rouwenhorst

Yale School of Management - International Center for Finance

소개

논문은 1962년부터 2002년 기간의 일간 데이터를 이용하여 "Pair Trading"이라는 월가의 투자 전략을 테스트하고 결과를 정리합니다.

핵심이론

• Enter a long position on the spread if it is below -1 STD.
• Enter a short position on the spread if it is above 1 STD.
•

프로세스

1. 데이터 (binance,bitmart,huobi,gateio,bittrex)
2. indicator 정립
3. Strategy 정립
4. 데이터 -> indicator -> Strategy -> broker 연결

Bactrader 목표

• custom indicator 만들기
• broker 다루어 보기

논문구현

python 으로 코드구현을 해보았다

사용한 라이브러리 : ccxt backtrader, empyrical, pandas, numpy, matplotlib

사용한 환경 : colab

설정

import datetime
from datetime import datetime as dt
import pandas as pd
import numpy as np
import ccxt
import backtrader as bt
import empyrical as ep
import matplotlib.pyplot as plt
from pylab import rcParams
%matplotlib inline
rcParams['figure.figsize'] = 16,9
rcParams['figure.facecolor'] = '#eeeeee'
plt.title('dummy')
plt.plot([1,3,2,4])
plt.close()

데이터 불러오기 (binance BTC/USDT, binance ETH/USDT)

def get_data(place,coin) :
    start_date = int(datetime.datetime(2020, 1, 1, 0, 0).timestamp() * 1000)

    if place == 'binance' :
      binance = ccxt.binance()
      ohlcvs = binance.fetch_ohlcv(coin, timeframe='1d', since=start_date, limit = 365)
    if place == 'okex' :
      okex = ccxt.okex()
      ohlcvs = okex.fetch_ohlcv(coin, timeframe='1d', since=start_date , limit = 365)
    if place == 'upbit' :
      upbit = ccxt.upbit()
      ohlcvs = upbit.fetch_ohlcv(coin, timeframe='1d', since=start_date , limit = 365)
    if place == 'ftx' :
      ftx = ccxt.ftx()
      ohlcvs = ftx.fetch_ohlcv(coin, timeframe='1d', since=start_date , limit = 365)
    if place == 'huobi' :
      huobi = ccxt.huobi()
      ohlcvs = huobi.fetch_ohlcv(coin, timeframe='1d', since=start_date , limit = 365)
    if place == 'bitmart' :
      bitmart = ccxt.bitmart()
      ohlcvs = bitmart.fetch_ohlcv(coin, timeframe='1d', since=start_date , limit = 365)
    if place == 'gateio' :
      gateio = ccxt.gateio()
      ohlcvs = gateio.fetch_ohlcv(coin, timeframe='1d', since=start_date , limit = 365)
    if place == 'bitrue' :
      bitrue = ccxt.bitrue()
      ohlcvs = bitrue.fetch_ohlcv(coin, timeframe='1d', since=start_date , limit = 365)
    if place == 'bittrex' :
      bittrex = ccxt.bittrex()
      ohlcvs = bittrex.fetch_ohlcv(coin, timeframe='1d', since=start_date , limit = 365)
    for idx, ohlcv in enumerate(ohlcvs):
        ohlcvs[idx] = [dt.fromtimestamp(ohlcv[0]/1000).strftime('%Y-%m-%d %H:%M:%S'), ohlcv[1], ohlcv[2], ohlcv[3], ohlcv[4],ohlcv[5]]

    df = pd.DataFrame(ohlcvs)
    df.columns = ['Time', 'Open','High','Low','Close','Volume']
    df['Time'] = pd.to_datetime(df['Time'], format='%Y-%m-%d %H:%M:%S', errors='raise')
    df.set_index('Time',inplace=True)

    return df

indicator 설정

class Pair(bt.indicators.PeriodN):
    params = {'period': 10}  # even if defined, we can redefine the default value
    lines = ('zscore',)  # our output line

    def __init__(self):
        self.transform = bt.ind.OLS_TransformationN(self.data0, self.data1,
                                                   period=self.p.period)
        self.lines.zscore = self.transform.zscore

Strategy 설정

class Test_Strategy(bt.Strategy):
    params = dict(
        threshold=1,
    )
    def __init__(self):
        self.lines.zscore = Pair(self.data0,self.data1)
        self.threshold = self.p.threshold

    def next(self):
        # if not self.position:

          if (self.lines.zscore[0] < abs(self.threshold)) :
            self.order = self.buy()

        # else:
          if (self.lines.zscore[0] > self.threshold) :
            self.order = self.sell()

실행

binance_btc = get_data('binance','BTC/USDT')
binance_eth = get_data('binance','ETH/USDT')
data0=bt.feeds.PandasData(dataname=binance_btc)
data1=bt.feeds.PandasData(dataname=binance_eth)

data0=bt.feeds.PandasData(dataname=binance_btc)
data1=bt.feeds.PandasData(dataname=binance_eth)

cerebro = bt.Cerebro()
cerebro.adddata(data0)
cerebro.adddata(data1)
cerebro.addstrategy(Test_Strategy)
cerebro.addanalyzer(bt.analyzers.PyFolio)
cerebro.broker.setcash(1000000)
cerebro.addsizer(bt.sizers.FixedSize, stake=5)
print('Starting Portfolio Value: %.2f' % cerebro.broker.getvalue())
# Run over everything
results = cerebro.run()  # [15]
# Print out the final result
print('Final Portfolio Value: %.2f' % cerebro.broker.getvalue())

Analyze

strat = results[0]
pyfoliozer = strat.analyzers.getbyname('pyfolio')
returns, positions, transactions, gross_lev = pyfoliozer.get_pf_items()

SIMPLE_STAT_FUNCS = [
    ep.annual_return,
    ep.cum_returns_final,
    ep.annual_volatility,
    ep.sharpe_ratio,
    ep.calmar_ratio,
    ep.stability_of_timeseries,
    ep.max_drawdown,
    ep.omega_ratio,
    ep.sortino_ratio,
    ep.tail_ratio,
]

STAT_FUNC_NAMES = {
    'annual_return': 'Annual return',
    'cum_returns_final': 'Cumulative returns',
    'annual_volatility': 'Annual volatility',
    'sharpe_ratio': 'Sharpe ratio',
    'calmar_ratio': 'Calmar ratio',
    'stability_of_timeseries': 'Stability',
    'max_drawdown': 'Max drawdown',
    'omega_ratio': 'Omega ratio',
    'sortino_ratio': 'Sortino ratio',
    'skew': 'Skew',
    'kurtosis': 'Kurtosis',
    'tail_ratio': 'Tail ratio',
    'common_sense_ratio': 'Common sense ratio',
    'value_at_risk': 'Daily value at risk',
    'alpha': 'Alpha',
    'beta': 'Beta',
}

stats = pd.Series()
for i,stat_func in enumerate(SIMPLE_STAT_FUNCS):
    stats[STAT_FUNC_NAMES[stat_func.__name__]] = stat_func(returns)
    stats.iloc[i] = str(np.round(stats.iloc[i]  * 100,3)) + '%'

perf_stats = pd.DataFrame(stats, columns=['Backtest'])

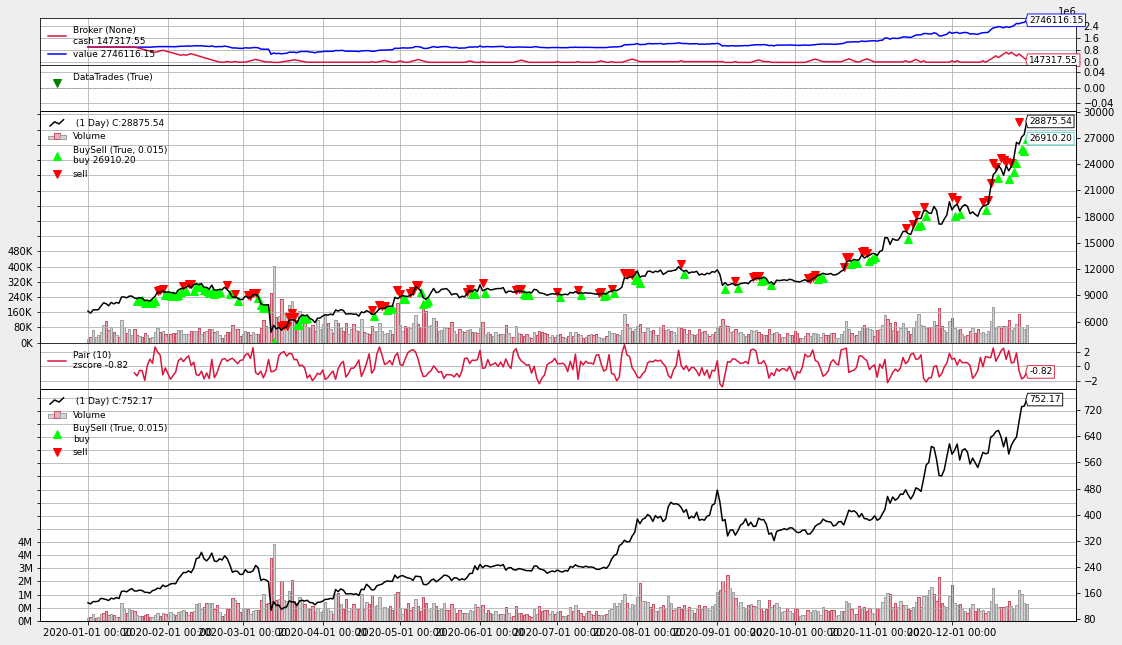

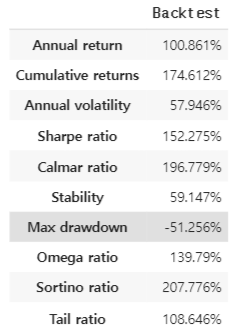

Result

Reference

https://papers.ssrn.com/sol3/papers.cfm?abstract_id=141615

Pairs Trading: Performance of a Relative Value Arbitrage Rule

https://quantpedia.com/strategies/pairs-trading-with-stocks/

Pairs Trading with Stocks - QuantPedia

https://www.quantconnect.com/tutorials/strategy-library/pairs-trading-with-stocks

QuantConnect Tutorials



https://towardsdatascience.com/pairs-trading-with-cryptocurrencies-e79b4a00b015

Pairs Trading with Cryptocurrencies

https://medium.com/@dinodecastro/pair-trading-with-cryptocurrencies-part-2-a820ca121400

Pair-trading With Cryptocurrencies Part 2

https://github.com/lamres/pairs_trading_cryptocurrencies_strategy_catalyst

GitHub - lamres/pairs_trading_cryptocurrencies_strategy_catalyst: Pairs trading strategy example based on Catalyst

https://github.com/mementum/backtrader/blob/master/contrib/samples/pair-trading/pair-trading.py

GitHub - mementum/backtrader: Python Backtesting library for trading strategies
